- Expanded Metal Mesh -

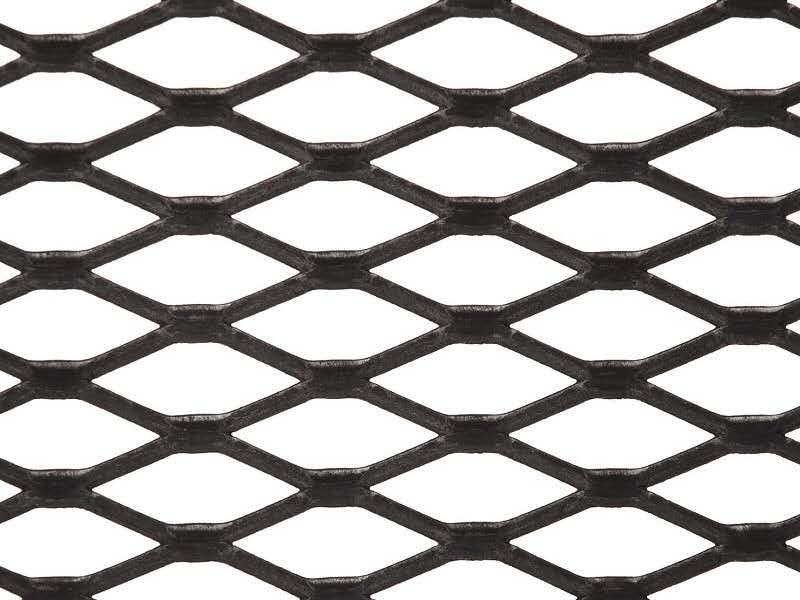

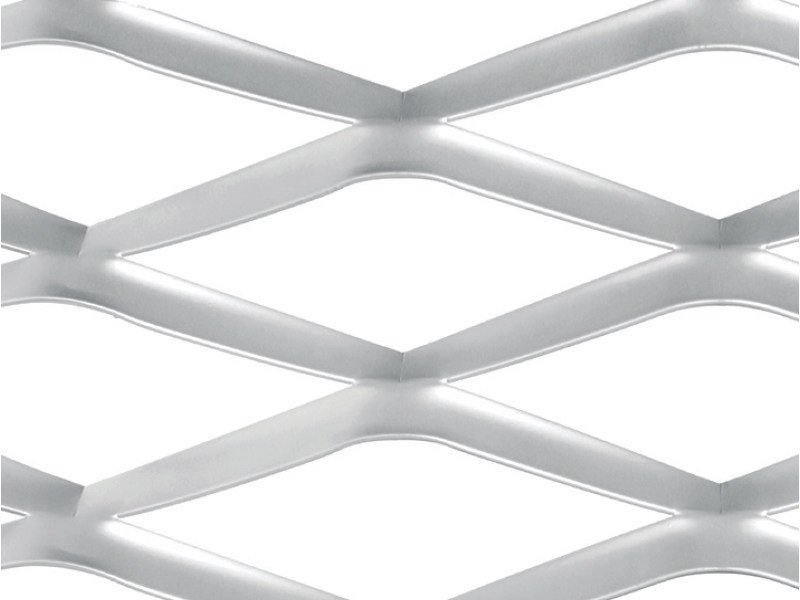

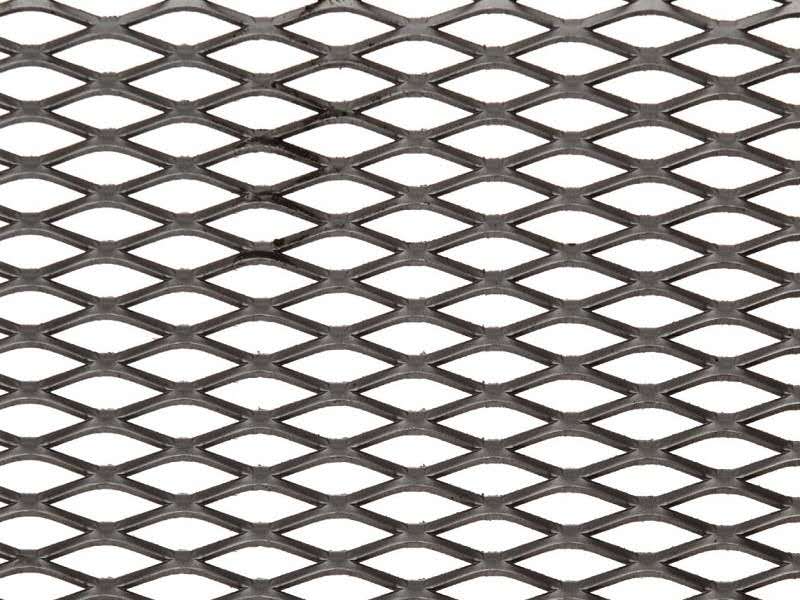

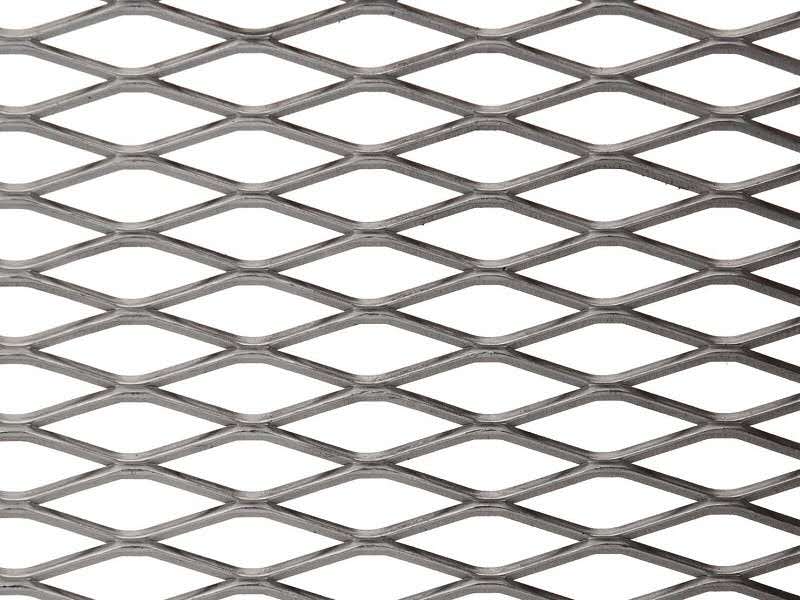

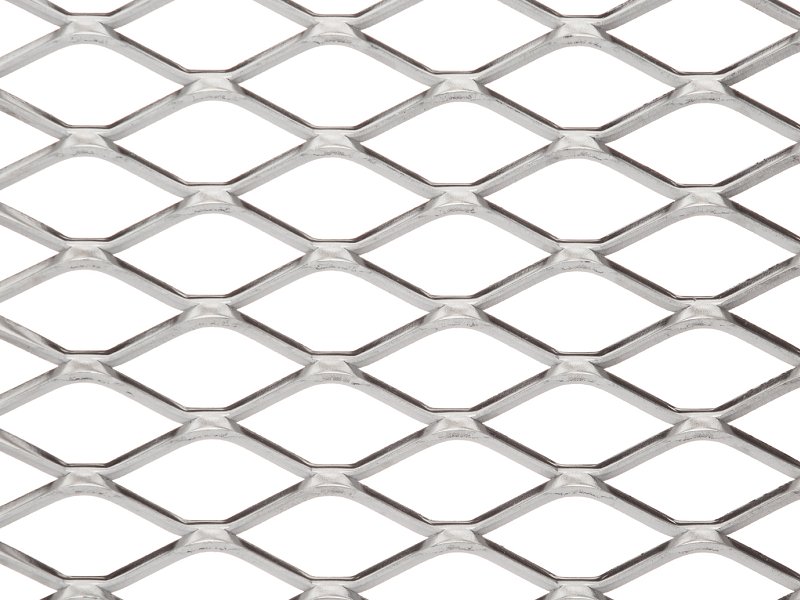

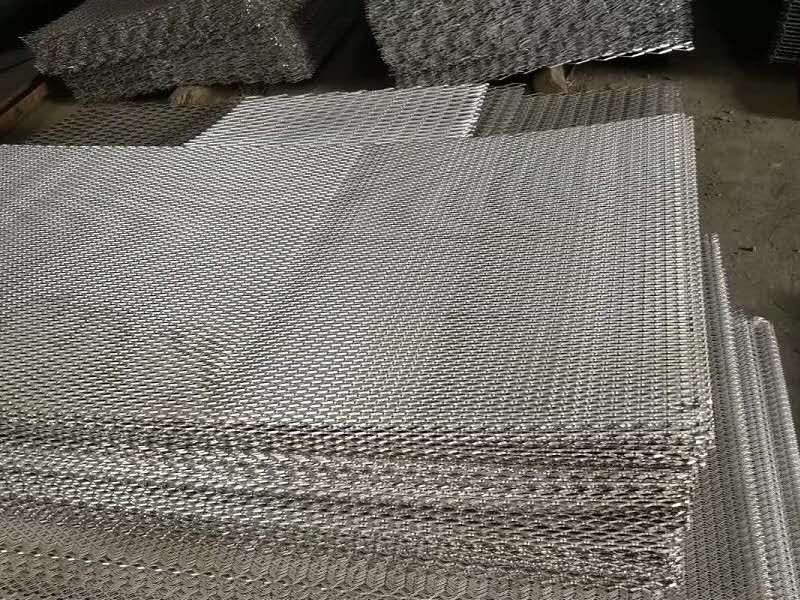

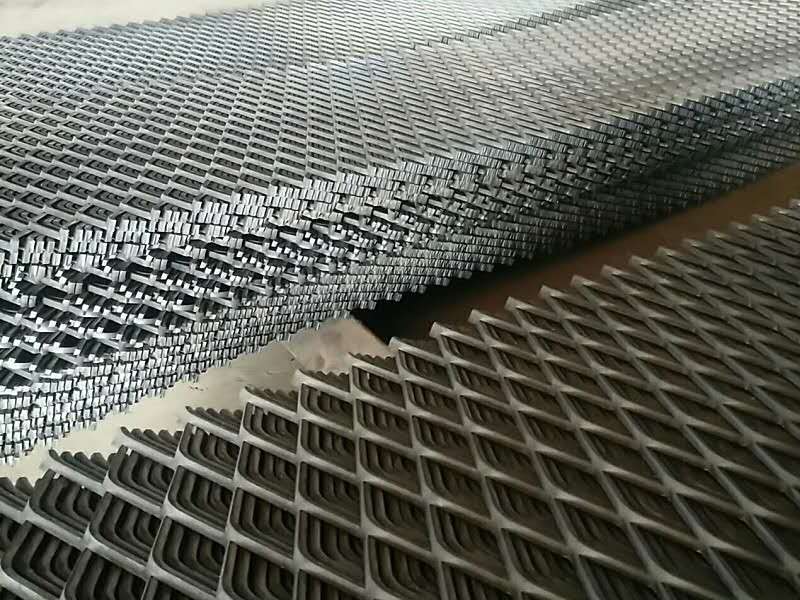

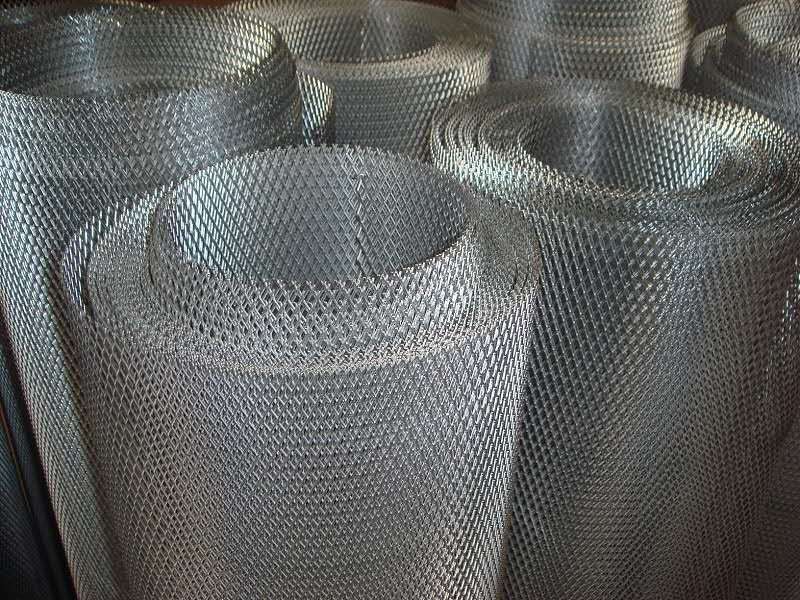

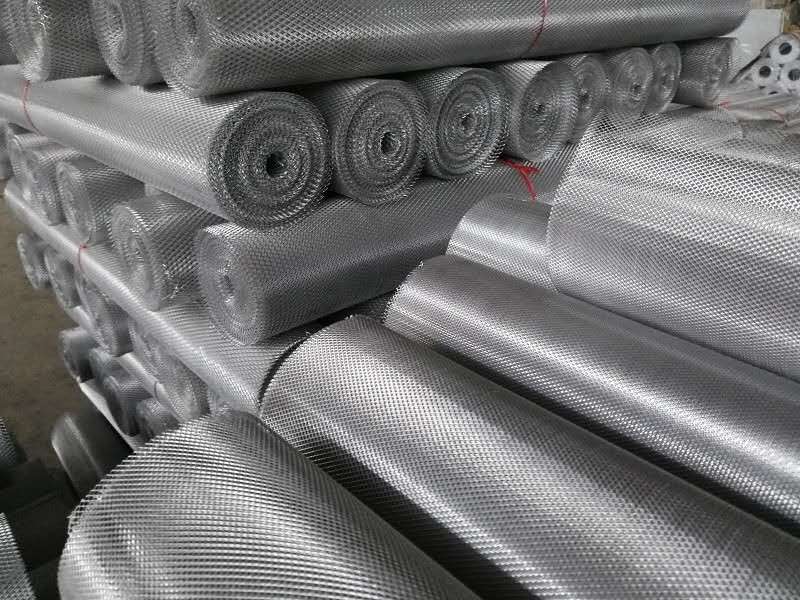

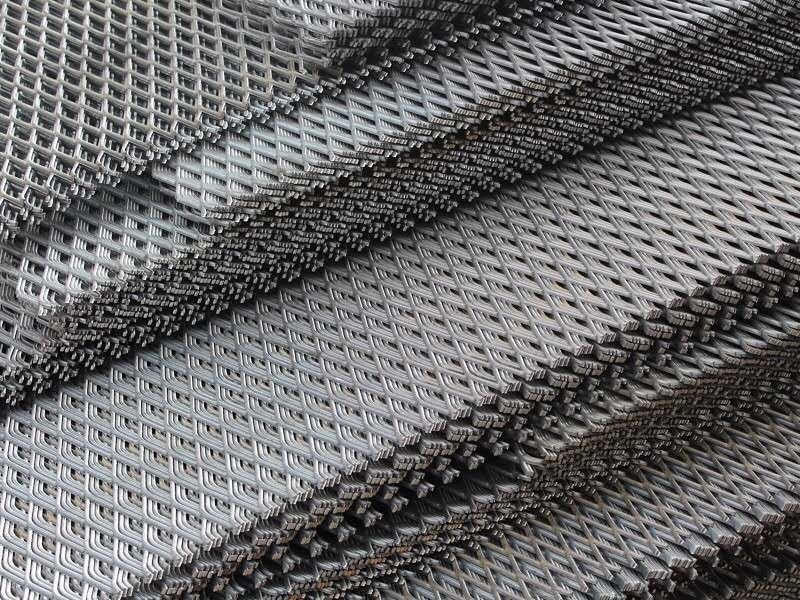

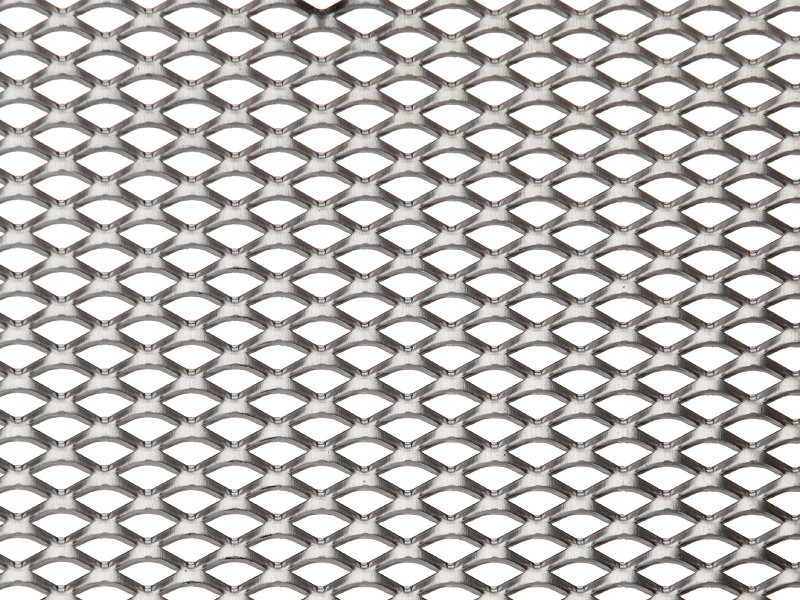

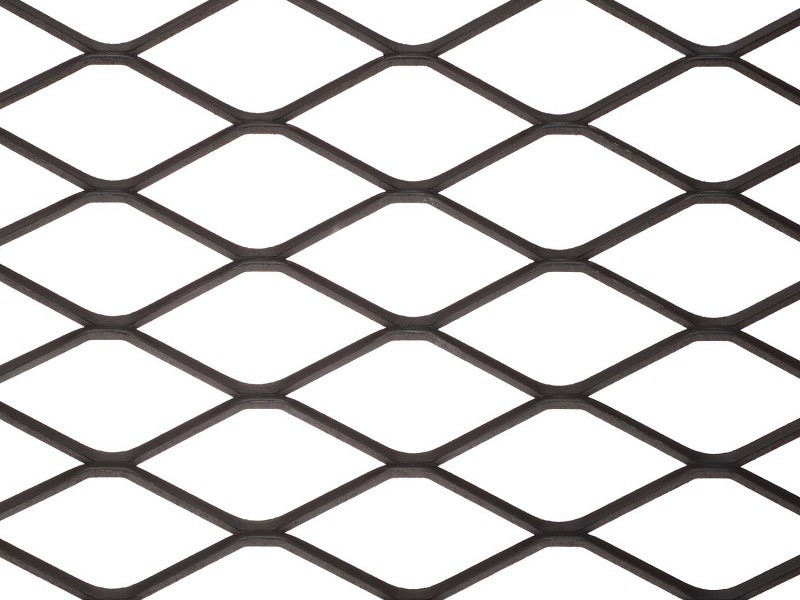

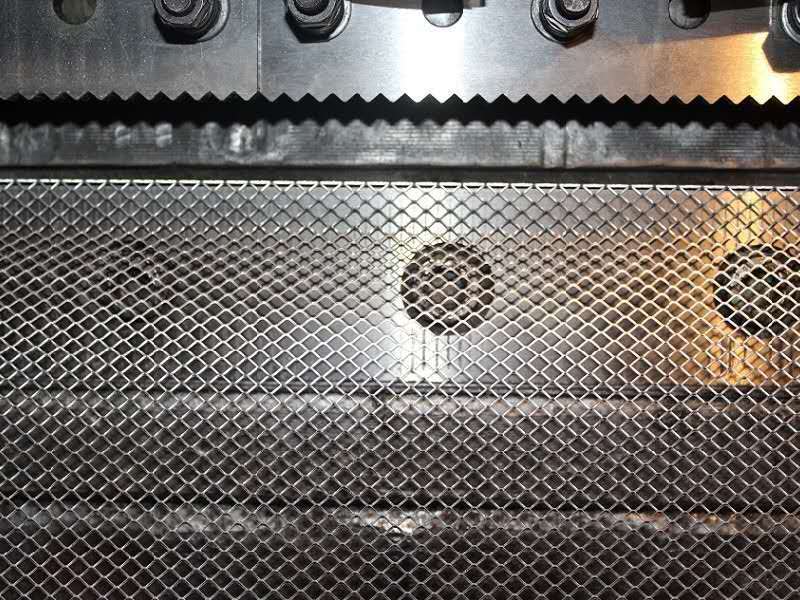

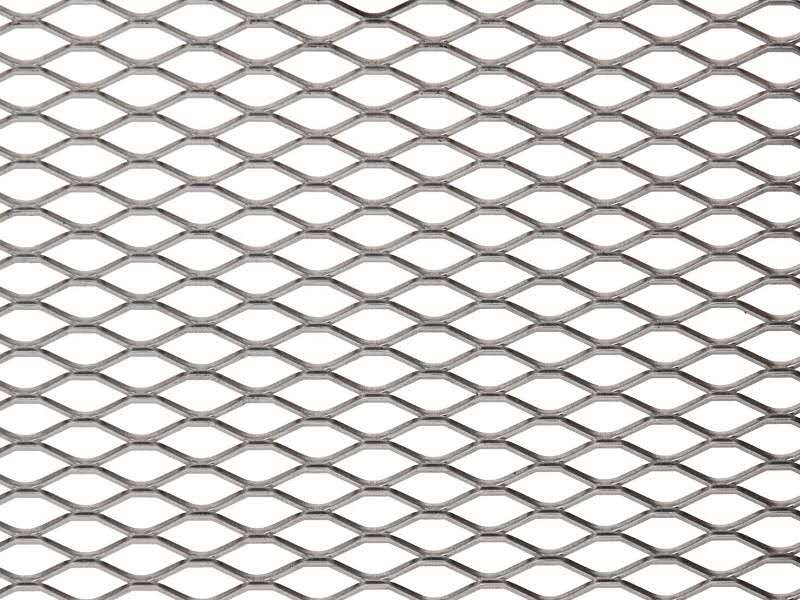

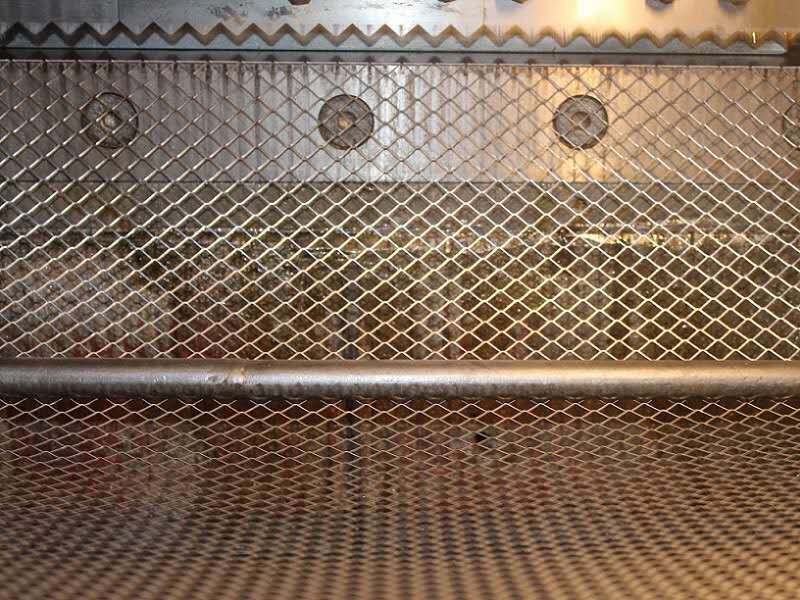

Expanded metal mesh is die cut and stretched on an expanded metal press. The strands and bonds of the expanded metal are set at a uniform angle tothe plane of the expanded metal sheet. This gives the product added strength and rigidity, while maintaining skid resistance and maximum air circulation. The diamond shaped openings have a slightly raised surface, which assists in maintaining the metal’s skid resistance properties.

Materials: stainless steel, carbon steel, galvanized steel, aluminum, and other metalalloys etc.

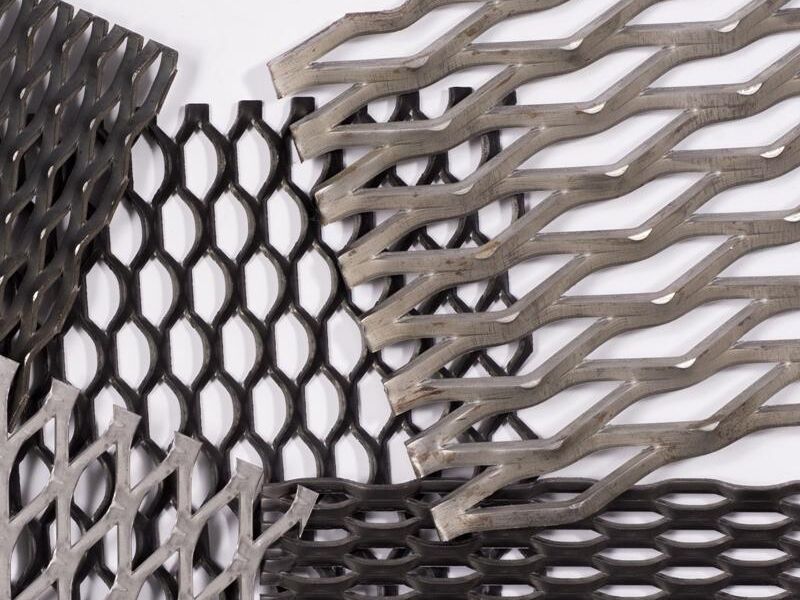

Species: small, medium and heavy expanded metal mesh.

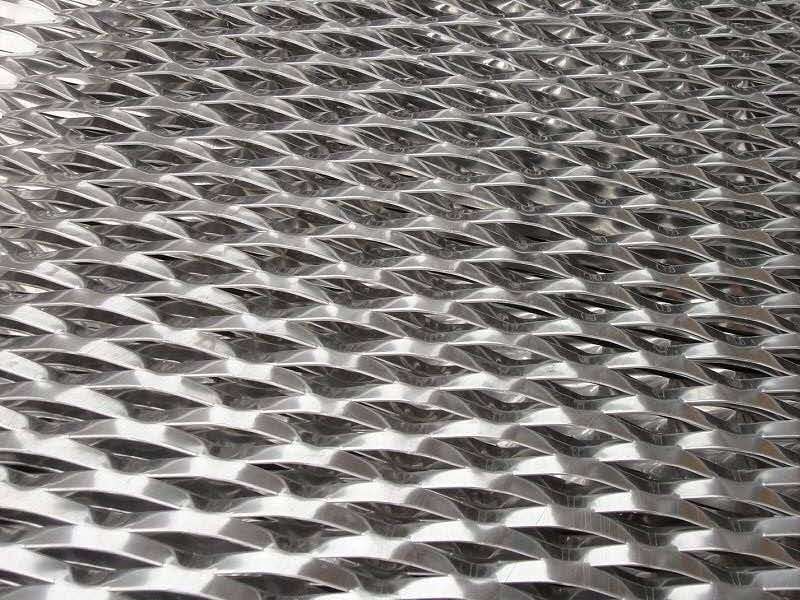

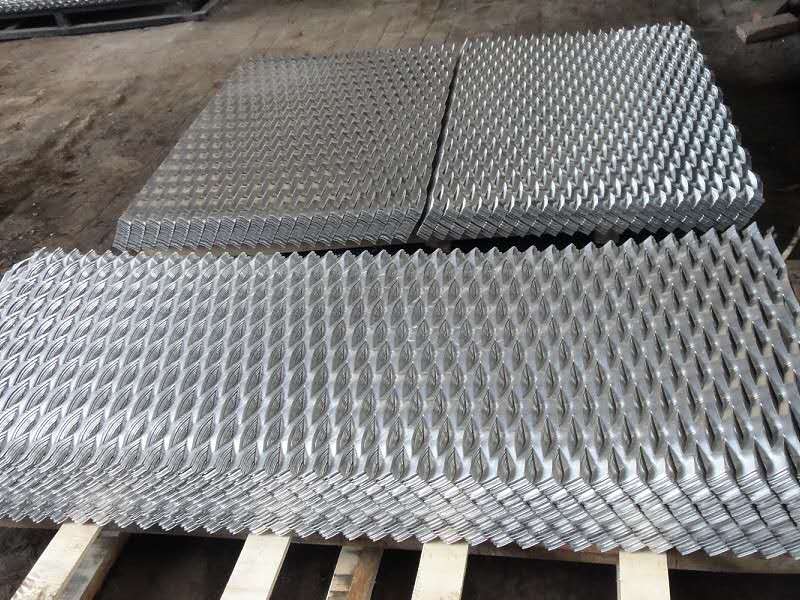

Surface type: flattened, raised.

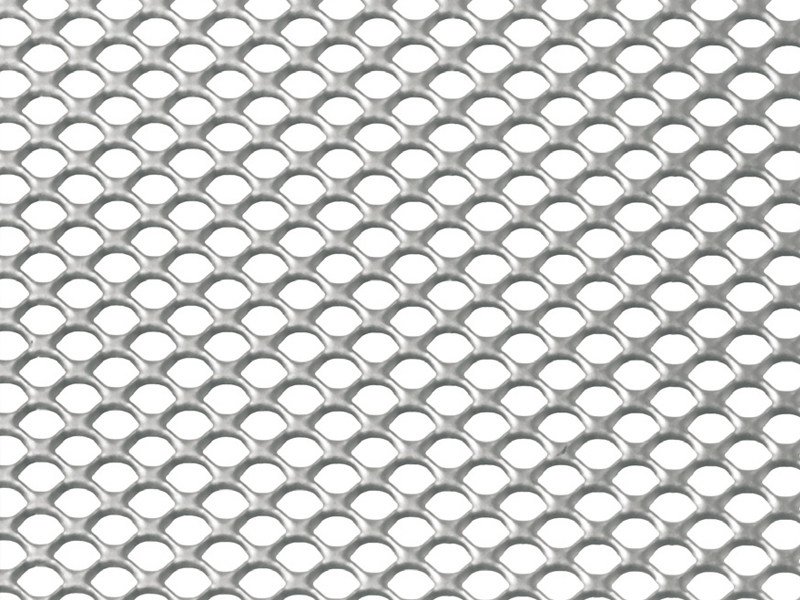

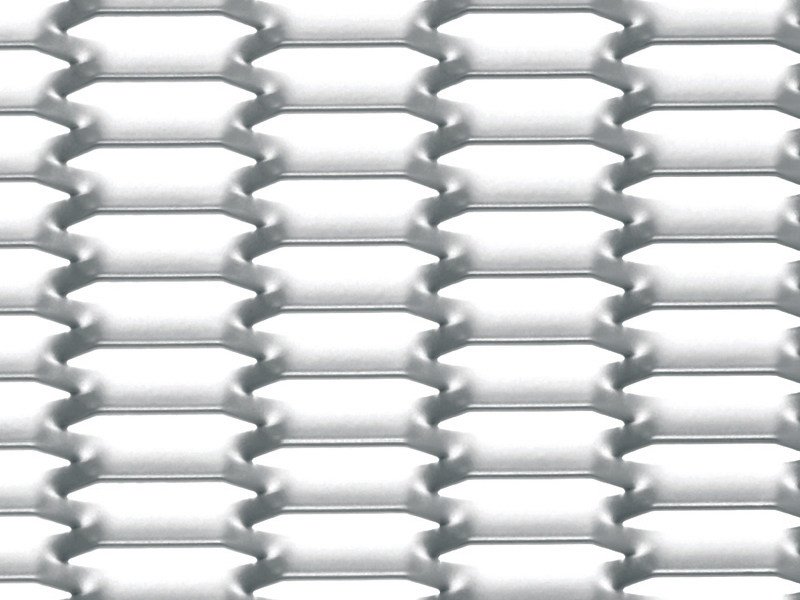

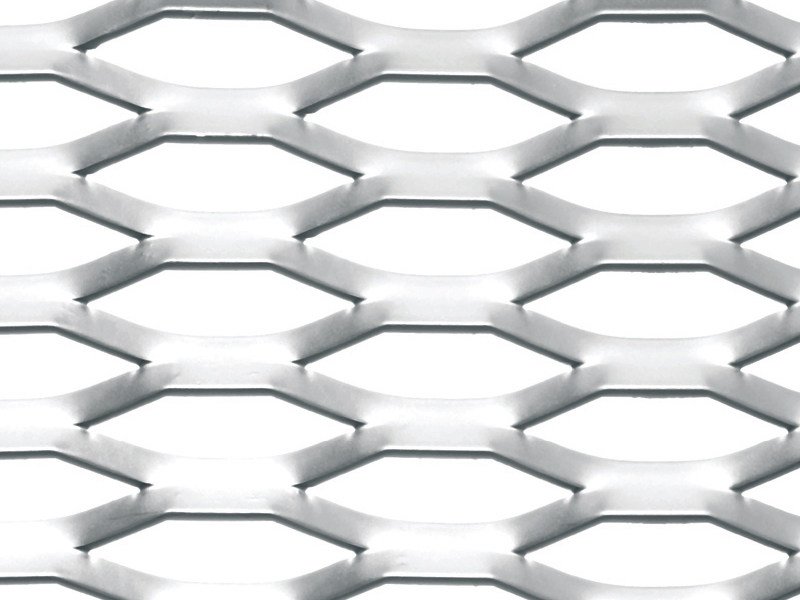

Shape of the hole: diamond, square, hexagonal, round, special shape.

Width of expanded metal mesh: 0.5-4m.

Length of expanded metal mesh: 0.6-4 m.

Thickness: 0.3mm– 6.0mm

SW* LW : 2*3, 2*4, 3*5, 4*8, 5*10, 7*12, 8*16, 10*20, 16*30, 18*30, 20*40, 25*50, 30*60, 34*76.2, 40*80, 45*100, 50*100, 60*120, 125*300mm etc.

Application:

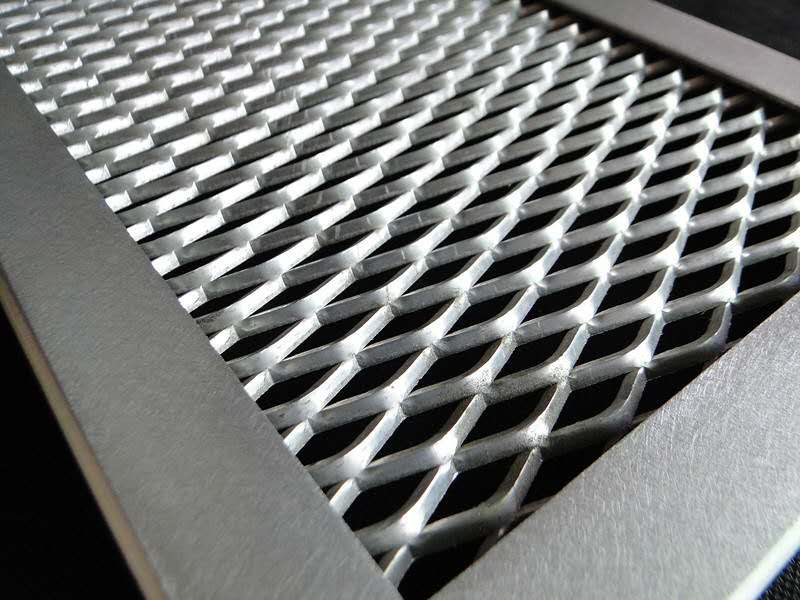

Building ships, Bridges, such as boiler platform, pedals，may also serve as the pouring cement and light construction materials tostrengthen, and all kinds of vehicles, air compressor and cooling ventilation cover and mechanical drive shields, acoustics, filter,air conditioning equipment, satellite antenna, outdoor furniture, the mechanical facility protection, highway hulan, building upholster,platform aisle of prevent slippery, etc.

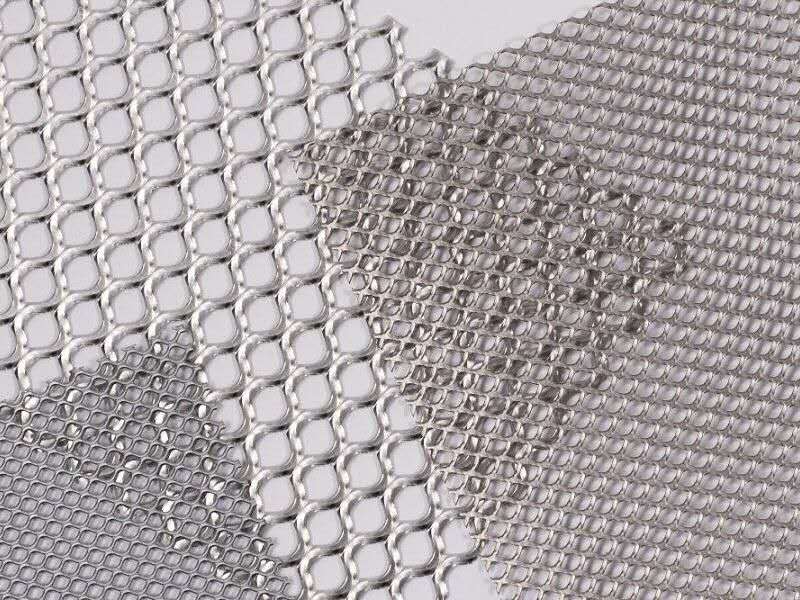

Stainless steel expanded metal mesh can be used as expanded metal filter element for liquid and gas filtration.

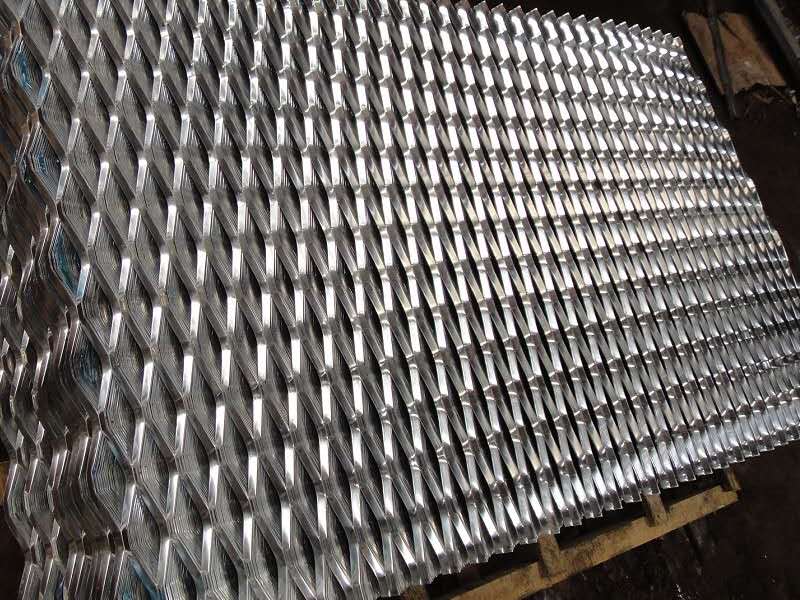

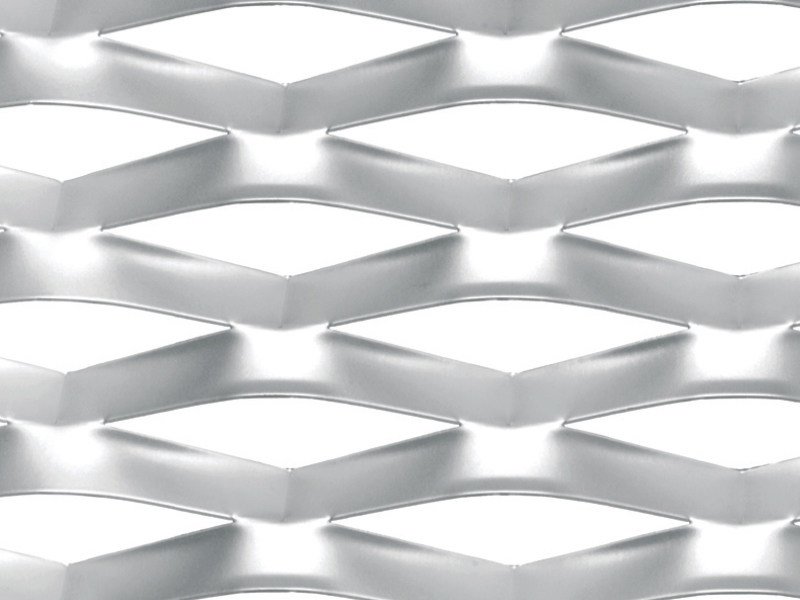

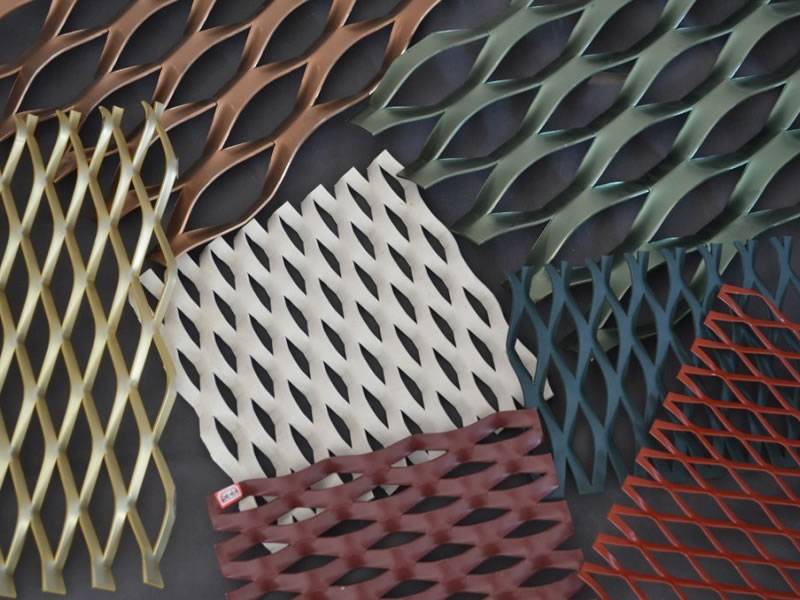

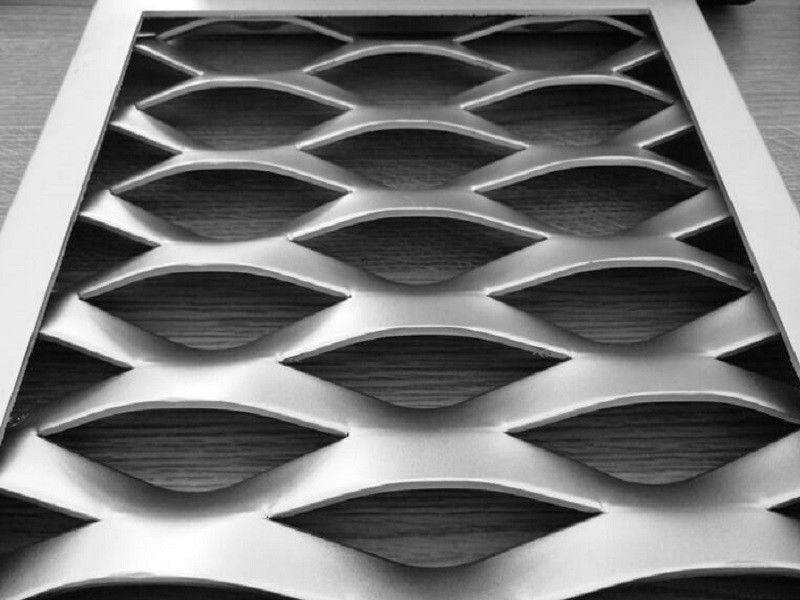

Aluminum expanded metal mesh is widely used in the decoration applications as the decorative expanded metal mesh. It can be used in the exterior of the building for wall cladding, it can be used in the interior of the shopping malls, hotels for wall decorations.
